Tuttnauer T-Top 11: 27L Class S tabletop autoclave with closed-door drying, upgradable to Class B, automatic drain and fill kit included. Sold and supported by Alpha Scientific Repair Services Ltd in BC, Alberta and Saskatchewan. Call for a Quote: 1-888-818-4847.

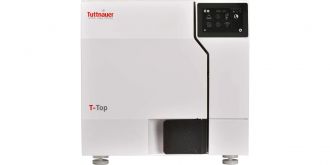

The Tuttnauer T-Top 11 is a 27-liter tabletop steam autoclave with closed-door drying for small to medium dental and medical clinics. It ships as a Class S sterilizer and is upgradable to pre/post vacuum (Class B). Compared with the 21 L T-Top 10S, the T-Top 11 has a larger 11" chamber and includes Tuttnauer's automatic drain and fill kit. Alpha Scientific Repair Services Ltd, an authorized Tuttnauer dealer, sells and supports the T-Top 11 across British Columbia, Alberta and Saskatchewan. Call for a Quote: 1-888-818-4847 (local 604-690-3389).
| Specification | T-Top 11 | T-Top 10 / 10S |
|---|---|---|
| Chamber size | 11" (dia.) x 18" (D) / approx. 280 x 452 mm | 10" (dia.) x 18" (D) / approx. 249 x 450 mm |
| Chamber volume | 27 L / 7 gal | 21 L / 5.5 gal |
| Usable chamber space | approx. 20 L (75%) | approx. 16 L (75%) |
| Overall dimensions (D x W x H) | 23" x 19.5" x 17.5" | 23" x 18.1" x 18" |
| Trays supplied | 4 trays, approx. 14.7 x 8.4 x 0.7 in. | 4 trays (2 of 14.7 x 7.3 x 0.6 in., 2 of 14.7 x 8.4 x 0.7 in.) |
| Max trays | 5 | 5 (web page; brochure lists 4) |
| Max solid load (unwrapped / wrapped) | approx. 19.8 lbs / 11.9 lbs | approx. 13 lbs / 7.9 lbs |
| Max textile load | approx. 4.4 lbs (2 kg) | approx. 3.3 lbs (1.5 kg) |
| Clean-water reservoir | approx. 5 L | approx. 3.6 L |
| Water filling | Manual and automatic (drain and fill kit included; optional 1/2 in. demineralized water inlet) | Manual |
| Net / shipping weight | 115 lbs / approx. 127.8 lbs | 99 lbs / approx. 112 lbs |
| Min. cabinet opening (W x H x D) | 23.4" x 20.1" x 25.6" | 22.1" x 20.1" x 25.6" |
| Electrical (120 V model) | 1 ph 120 VAC +/-10%, 60 Hz, 1500 W, 12.5 A; 15 A breaker | same |
| Max. working pressure | approx. 40.6 psi (2.8 bar) | same |
| Cycle memory | Up to 500 cycles | same |
| Digital connections | 2 USB, Wi-Fi, Ethernet, T-Connect, R.PC.R; optional printer | same |
| Sterilizer class | Class S, closed-door drying; upgradable to pre/post vacuum (Class B) | same |
| Class | Program | T-Top 11 | T-Top 10 / 10S |
|---|---|---|---|
| Class S | Unwrapped instruments 270 deg F | 37 min | 21 min |
| Class S | Wrapped pouches 270 deg F | 59 min | 47 min |
| Class S | Unwrapped delicate 250 deg F | 46 min | 34 min |
| Class S | Handpieces 270 deg F | 70 min | 50 min |
| Class B (upgrade) | Unwrapped instruments 273 deg F | 38 min | 24 min |
| Class B (upgrade) | Wrapped pouches 273 deg F | 66 min | 52 min |
| Class B (upgrade) | Wrapped delicate 250 deg F | 80 min | 73 min |
| Class B (upgrade) | Unwrapped delicate 250 deg F | 46 min | 34 min |
Specifications are from Tuttnauer's official T-Top web page, brochure and operator manual. Cycle times are averages for a standard load and vary with load weight, type and conditions.
EN 13060 (verification and validation tests), IEC 61010-1 and 61010-2-040 (electrical safety), IEC 61326-1 (EMC), EN 62304 (software), ISO 9001:2015, ISO 13485:2016, and PED 2014/68/EU (pressure vessel). These are the manufacturer's listings. Your clinic's own testing and records still determine inspection readiness.
The T-Top 11 has a larger 11 in. dia. x 18 in. chamber (27 L vs 21 L), about 20 L of usable space vs about 16 L, comes with 4 trays, a 5 L clean-water reservoir (vs 3.6 L), and includes Tuttnauer's automatic drain and fill kit. It weighs 115 lbs vs 99 lbs and its cycles run longer because of the bigger load.
Tuttnauer describes the T-Top as a Class S sterilizer with closed-door drying that is upgradable to pre/post vacuum (Class B), and publishes Class B cycle times for the T-Top 11. Ask us about the Class B upgrade when you request a quote.
No. Tuttnauer calls the T-Top plug and play and says it needs only a power source. The T-Top 11 can be filled manually or, as an option, connected to a demineralized water supply through a 1/2 in. automatic inlet installed by a technician.
Per the Tuttnauer operator manual: 1 phase 120 VAC +/-10%, 60 Hz, 1500 W, 12.5 A, on a recommended 15 A circuit breaker.
Tuttnauer lists average times including drying of 37 min for unwrapped instruments at 270 deg F and 59 min for wrapped pouches at 270 deg F (Class S). Times vary with load weight, type and conditions.
Alpha Scientific Repair Services Ltd, an authorized Tuttnauer dealer in Surrey BC, sells, installs and services the T-Top 11 across BC, Alberta and Saskatchewan. Call 1-888-818-4847 or 604-690-3389.
Our factory-trained technicians install, maintain and repair Tuttnauer autoclaves across BC, Alberta and Saskatchewan. Call toll-free 1-888-818-4847 or locally 604-690-3389.
