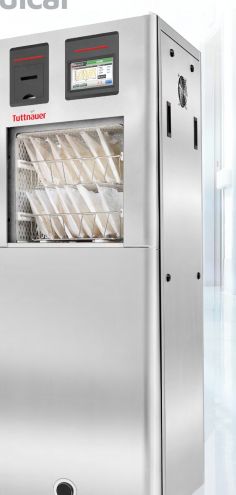

Tuttnauer PlazMax P50

The Tuttnauer PlazMax P50 is the compact 47-liter model in Tuttnauer’s PlazMax low-temperature plasma sterilizer line. It uses eco-friendly vaporized hydrogen peroxide (VHP / H₂O₂) to sterilize heat- and moisture-sensitive medical devices for operating rooms and Sterile Processing Departments (SPD) — without leaving dangerous residues (per Tuttnauer).

Choose P50 when you need PlazMax plasma performance in a smaller chamber footprint for clinics, specialty suites, or lower-throughput SPD bays across British Columbia and Alberta.

Alpha Scientific Repair Services Ltd sells and supports the Tuttnauer PlazMax P50 across British Columbia and Alberta with factory-trained technicians, delivery/set-up guidance, and ongoing service for hospitals, CSSD / SPD teams, surgical centres, and specialty clinics. Call for a Quote: 1-888-818-4847.

Highlights

• Low-temperature vaporized hydrogen peroxide (H₂O₂) plasma sterilization for heat- and moisture-sensitive instruments
• Cycles typically under 55°C (per Tuttnauer process description)
• Normal (non-hollow), Advanced (hollow), and unique Endoscope cycles
• Penetration test and leakage test programs
• Aviation-grade aluminium chamber with excellent temperature distribution
• Non-toxic H₂O₂ sterilizing agent — by-products water and oxygen (per OEM)
• Multi-color touchscreen HMI; thermal printer + USB / Ethernet cycle data access
• Stainless-steel panels; vertical sliding door options (manual or vertical; single or double door)
• Hands-free opening device available on supported configurations
• Chamber volume: 47 liters (P50)
• 1 basket (399 × 599 mm)
• Cycle times (hot cycle, per OEM): Normal 35 min · Advanced 40 min · Endoscope 32 min

Technical specifications

• Model: PlazMax P50
• Chamber volume: 47 L
• External dimensions (W×H×D / D 2-doors): 702 × 1528 × 729 / 736 mm
• Baskets: 1 × (399 × 599 mm)
• Power: 3100 W · Current: 13.5 A
• Voltage: 230 V (3-phase 50–60 Hz per OEM table)
• Normal cycle (non-hollow): 35 min
• Advanced cycle (hollow): 40 min
• Endoscope cycle: 32 min
• Test programs: Penetration test; Leakage test

Specifications sourced from Tuttnauer official PlazMax low-temperature plasma sterilizer product materials and brochure. Confirm electrical, installation, and residual-gas requirements for your facility before ordering. Cycle times are based on a hot cycle and may vary with load volume (per OEM).

Downloads / Resources

• Tuttnauer PlazMax Low Temperature Plasma Sterilizer brochure (PDF) — hosted on Alpha Scientific
• Official Tuttnauer PlazMax brochure (OEM PDF)
• Official Tuttnauer PlazMax product page

FAQ

Is PlazMax P50 a steam autoclave?

No. PlazMax is a low-temperature vaporized hydrogen peroxide plasma sterilizer for heat-sensitive equipment — not a steam autoclave.

What chamber size is the P50?

Official Tuttnauer specification: 47 liters, with one 399 × 599 mm basket.

Who quotes and supports PlazMax in BC and Alberta?

Alpha Scientific Repair Services Ltd — factory-trained technicians. Call for a Quote: 1-888-818-4847.
