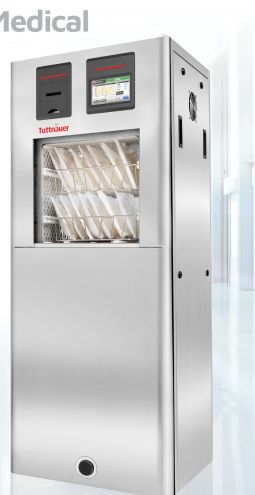

Tuttnauer PlazMax P160

The Tuttnauer PlazMax P160 is the largest current PlazMax chamber at 162 liters, with two deeper baskets (399 × 899 mm) for high-throughput sterile processing departments that need low-temperature plasma capacity for heat-sensitive instruments, hollow devices, and endoscopes.

As an authorized Tuttnauer dealer, Alpha Scientific provides quotes, install guidance, and factory-trained service for PlazMax P160 across British Columbia and Alberta.

Alpha Scientific Repair Services Ltd sells and supports the Tuttnauer PlazMax P160 across British Columbia and Alberta with factory-trained technicians, delivery/set-up guidance, and ongoing service for hospitals, CSSD / SPD teams, surgical centres, and specialty clinics. Call for a Quote: 1-888-818-4847.

Highlights

• Low-temperature vaporized hydrogen peroxide (H₂O₂) plasma sterilization for heat- and moisture-sensitive instruments
• Cycles typically under 55°C (per Tuttnauer process description)
• Normal (non-hollow), Advanced (hollow), and unique Endoscope cycles
• Penetration test and leakage test programs
• Aviation-grade aluminium chamber with excellent temperature distribution
• Non-toxic H₂O₂ sterilizing agent — by-products water and oxygen (per OEM)
• Multi-color touchscreen HMI; thermal printer + USB / Ethernet cycle data access
• Stainless-steel panels; vertical sliding door options (manual or vertical; single or double door)
• Hands-free opening device available on supported configurations
• Chamber volume: 162 liters (P160) — largest current PlazMax size on tuttnaueur.com
• 2 baskets (399 × 899 mm)
• Cycle times (hot cycle, per OEM): Normal 43 min · Advanced 48 min · Endoscope 41 min

Technical specifications

• Model: PlazMax P160
• Chamber volume: 162 L
• External dimensions (W×H×D / D 2-doors): 702 × 1768 × 1029 / 1036 mm
• Baskets: 2 × (399 × 899 mm)
• Power: 4300 W · Current: 18.7 A
• Voltage: 230 V (3-phase 50–60 Hz per OEM table)
• Normal cycle (non-hollow): 43 min
• Advanced cycle (hollow): 48 min
• Endoscope cycle: 41 min
• Test programs: Penetration test; Leakage test

Specifications sourced from Tuttnauer official PlazMax low-temperature plasma sterilizer product materials and brochure. Confirm electrical, installation, and residual-gas requirements for your facility before ordering. Cycle times are based on a hot cycle and may vary with load volume (per OEM).

Downloads / Resources

• Tuttnauer PlazMax Low Temperature Plasma Sterilizer brochure (PDF) — hosted on Alpha Scientific
• Official Tuttnauer PlazMax brochure (OEM PDF)
• Official Tuttnauer PlazMax product page

FAQ

Is P160 the largest PlazMax model?

On current Tuttnauer PlazMax product materials, yes — P160 is listed at 162 L alongside P50 (47 L) and P110 (109 L).

Why choose plasma instead of steam for some instruments?

PlazMax is designed for heat- and moisture-sensitive devices that are not suitable for high-temperature steam autoclaving, using H2O2 vapor/plasma at low temperature (per OEM).

Who services PlazMax P160 in Western Canada?

Alpha Scientific Repair Services Ltd — Call for a Quote and service at 1-888-818-4847.

Related PlazMax models

• Tuttnauer PlazMax P50 (47 L)
• Tuttnauer PlazMax P110 (109 L)
