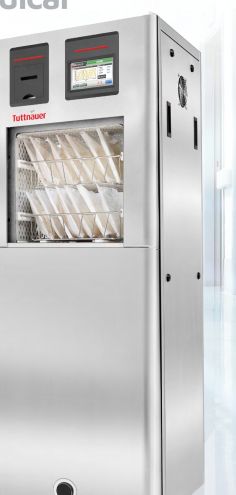

Tuttnauer PlazMax P110

The Tuttnauer PlazMax P110 is the mid-capacity 109-liter PlazMax low-temperature plasma sterilizer. It delivers Normal, Advanced (hollow), and Endoscope cycles with two baskets — suited to busy CSSD / SPD workflows and hospital sterile processing that need more throughput than the P50.

Alpha Scientific helps Western Canadian facilities select, install, and support PlazMax P110 with factory-trained technicians across British Columbia and Alberta.

Alpha Scientific Repair Services Ltd sells and supports the Tuttnauer PlazMax P110 across British Columbia and Alberta with factory-trained technicians, delivery/set-up guidance, and ongoing service for hospitals, CSSD / SPD teams, surgical centres, and specialty clinics. Call for a Quote: 1-888-818-4847.

Highlights

• Low-temperature vaporized hydrogen peroxide (H₂O₂) plasma sterilization for heat- and moisture-sensitive instruments
• Cycles typically under 55°C (per Tuttnauer process description)
• Normal (non-hollow), Advanced (hollow), and unique Endoscope cycles
• Penetration test and leakage test programs
• Aviation-grade aluminium chamber with excellent temperature distribution
• Non-toxic H₂O₂ sterilizing agent — by-products water and oxygen (per OEM)
• Multi-color touchscreen HMI; thermal printer + USB / Ethernet cycle data access
• Stainless-steel panels; vertical sliding door options (manual or vertical; single or double door)
• Hands-free opening device available on supported configurations
• Chamber volume: 109 liters (P110)
• 2 baskets (399 × 599 mm each)
• Cycle times (hot cycle, per OEM): Normal 39 min · Advanced 44 min · Endoscope 37 min

Technical specifications

• Model: PlazMax P110
• Chamber volume: 109 L
• External dimensions (W×H×D / D 2-doors): 702 × 1768 × 729 / 736 mm
• Baskets: 2 × (399 × 599 mm)
• Power: 4300 W · Current: 18.7 A
• Voltage: 230 V (3-phase 50–60 Hz per OEM table)
• Normal cycle (non-hollow): 39 min
• Advanced cycle (hollow): 44 min
• Endoscope cycle: 37 min
• Test programs: Penetration test; Leakage test

Specifications sourced from Tuttnauer official PlazMax low-temperature plasma sterilizer product materials and brochure. Confirm electrical, installation, and residual-gas requirements for your facility before ordering. Cycle times are based on a hot cycle and may vary with load volume (per OEM).

Downloads / Resources

• Tuttnauer PlazMax Low Temperature Plasma Sterilizer brochure (PDF) — hosted on Alpha Scientific
• Official Tuttnauer PlazMax brochure (OEM PDF)
• Official Tuttnauer PlazMax product page

FAQ

How does P110 differ from P50?

P110 has a 109 L chamber (vs 47 L), two baskets, higher power (4300 W), and slightly longer OEM cycle times for the larger chamber.

Does PlazMax P110 run endoscope cycles?

Yes. Official Tuttnauer materials list a dedicated Endoscope cycle (37 min hot cycle for P110) with shorter heating and reduced H2O2 exposure time versus other cycles.

Can Alpha Scientific quote PlazMax for Alberta hospitals?

Yes — Call for a Quote at 1-888-818-4847. Coverage includes British Columbia and Alberta.
