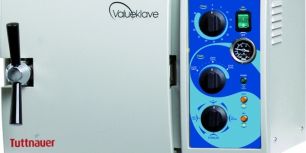

The compact size (7” chamber) makes it a perfect primary unit for small offices or a second autoclave for larger practices. The fast cycle time and heated drying delivers a quick turnaround for wrapped or unwrapped instruments.

The simple controls and easy closing door make this unit a breeze to operate. High speed and reliability are built into every Valueklave 1730.

Features:

• Fast Cycle Time. 11 minutes from a hot start* (Standard Unwrapped Cycle time).
• Automatic shut off at the end of both the sterilization and dry cycles
• A long life electro polished chamber and door
• Double safety locking device prevents door from opening while chamber is pressurized
• Drain valve is located on the front, allowing for quick and easy draining of water reservoir.
• Dual safety to protect against overheating.
• International certifications
• 1 year Manufacturer’s Warranty on parts and labour

Technical Specifications

• Chamber Dimension S*L : 7" x 13" | 230mm x 470mm
• Chamber Volume : 2gal | 7.5L
• Overall Dimensions D*W*H : 17.9" x 17.4" x 12" | 455mm x 440mm x 305mm
• Standard Cassettes Capacity : 2 Half
• Tray Dimensions D*W*H : 11.6" x 4.7" x 0.8" | 295mm x 120mm x 20mm
• No. of Trays : 3
• Voltage (V) Frequency (Hz) : 120V | 50/60Hz
• Power (W) Current (A) : 1350W | 11A
• Autoclave Weight : 50lbs | 23kg

Technical specifications
Overall Dimensions (DxWxH)

17.9” x 17.4” x 12”
455mm x 440mm x 305mm
Chamber Volume

7.5 Liter
2 Gallon
Chamber Dimensions

7” x 13”
230mm x 470mm
Tray Capacity

3 Trays
Tray Dimensions

11.6” x 4.7" x 0.8” (295mm x 120mm x 20mm)
Standard Cassettes Capacity

2 half
Voltage & Frequency

120V
50-60Hz
Power & Current

1350W
11A
Shipping Weight

54 Lbs.
25 Kg.
Warranty

1 year parts and labor
