Tuttnauer TIVA Washer-Disinfectors for Medical & Dental Instruments

Alpha Scientific supplies and supports Tuttnauer TIVA high-end washer-disinfectors across British Columbia and Alberta. TIVA units wash, thermally disinfect, and dry instruments before autoclave sterilization — the automated decontamination step clinics and CSSD teams need for reliable instrument turnaround.

With 25+ years of factory-trained service experience, Alpha Scientific helps dental practices, surgical centres, hospitals, veterinary clinics, and labs choose the right TIVA configuration, then install, maintain, and repair it. Call toll-free 1-888-818-4847 for quotes, demos, and service in Vancouver, Surrey, Victoria, Calgary, Edmonton, and across Western Canada.

Download the official brochure: TIVA Washer-Disinfectors (PDF)

Why TIVA

• Flexible turnkey washing, disinfection, and drying for a complete decontamination cycle
• Touchscreen control with color graphic display; cycle validation charts/graphs
• AISI 316L stainless steel washing chamber; AISI 304 frame
• Built-in steam condenser to reduce energy use and drying time
• Smart load / trolley type recognition on supported models

• Air drying with prefilter + HEPA H14 filter
• Up to 40 programs (preset and programmable)
• USB / printer options for cycle documentation
• Detergent dosing pumps with flowmeter (acid and alkaline; additional pumps optional)

Models at a glance

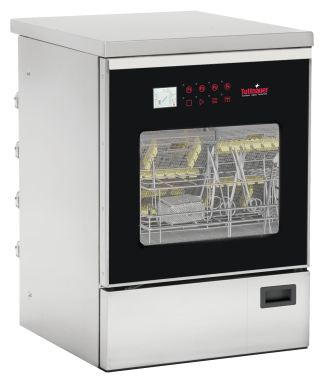

TIVA 8 — Undercounter, manual door (clinics & dental)

Best suited for clinics and dental practices. Manual double glass door. Up to 4 washing levels / 8 DIN baskets. 165 L chamber.

• TIVA8-1M (narrow): 600 × 650 × 860 mm (W×D×H)
• TIVA8-WD-1M / TIVA8-HS-1M (wide): 900 × 650 × 860 mm
• Trolleys available for DIN baskets, containers, mini-invasive equipment, anesthesia kits, bottles, shoes, and dental handpieces

TIVA 10-M — Manual hinged door(s) (surgical / sterilization departments)

Up to 6 washing levels / 12 DIN baskets. 265 L chamber.

• TIVA10-1M / TIVA10-2M: 650 × 700 × 1850 mm
• TIVA10-1M-HS / TIVA10-2M-HS: 650 × 700 × 2200 mm

TIVA 10-V — Automatic sliding door(s)

Same capacity class as TIVA 10-M (up to 6 levels / 12 DIN, 265 L). Automatic sliding glass door(s); optional hands-free door sensor.

• TIVA10-1V / TIVA10-2V: 680 × 700 × 1950 mm
• TIVA10-1V-HS / TIVA10-2V-HS: 680 × 700 × 2300 mm

TIVA 15-V — Automatic sliding door(s) (higher throughput)

Up to 6 washing levels / 18 DIN baskets. 430 L chamber.

• TIVA15-1V / TIVA15-2V: 1000 × 900 × 1900 mm
• TIVA15-1V-HS / TIVA15-2V-HS: 1000 × 900 × 2300 mm

Key features

• Thermal disinfection with water above 90°C (brochure process scheme)
• Multi-level washing trolleys and accessories for surgical, laparoscopy/ophthalmology, anesthesia, containers, shoes, and more
• Optional conductivity measurement, chamber LED lighting, spray-arm monitoring, pass-through frame closing, hybrid steam/electric heating (model-dependent)
• HS versions add preheated/demi boiler options for shorter cycles (per model)

Alpha Scientific support

Factory-trained technicians · Parts and preventative maintenance · Install and validation support · BC & Alberta coverage · Toll-free technical support Canada-wide.
